HCTL-2000

• Interfaces Encoder to Microprocessor • 14 MHz Clock Operation • Full 4X Decode • High Noise Immunity: Schmitt Trigger Inputs Digital Noise Filter • 12 or 16-Bit Binary Up/ Down Counter • Latched Outputs • 8-Bit Tristate Interface • 8, 12, or 16-Bit Operating Modes • Quadrature Decoder Output Signals, Up/Down and Count • Cascade Output Signals, Up/ Down and Count • Substantially Reduced System Software

Package

—

Quantity

2-ish

Notes

—

Datasheet

www.boondog.com/…/hctl2000.pdf ↗

Find more like this

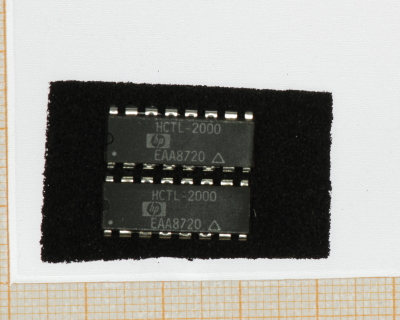

Photo on file

Nearby drawers

1419□ 1420□ 1421□ 1422□ 1423□ 1424□ 1425□ 1426□ 1427□ 1428□ 1429□ 1430□

Equivalent parts

Nothing else with this value and category

1424 HCTL-2000 Integrated Circuit (IC) · 2 This drawer

See the whole block of 100 →
